HORIZONTAL PROTECTOR MODEL ZK-H
Push here access to page of colours for this model
Push here to return of description model page
PREPARATION
The walls onto which the section is to be mounted should be finished and painted.

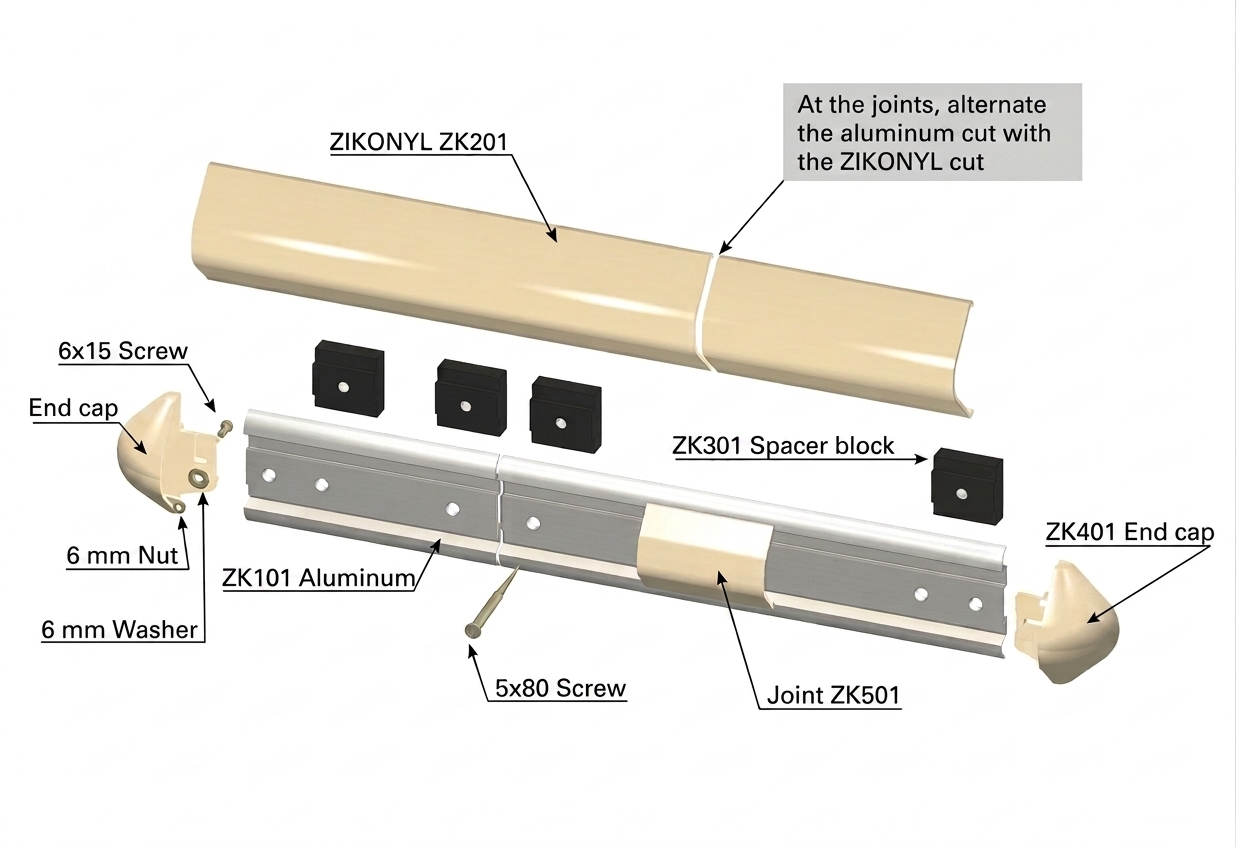

MOUNTING
Cut and drill the aluminium sections depending on the measurements needed.
Allow for a space of approximately 500 to 600 mm. between tubber blocks (Ref. ZK301).
To ensure a better fit, cut the Zikonyl section 2 mm. longer than the aluminium section.
Screw on the end caps before mounting the Zikonyl section at both the left-hand and roght-hand ends.
Fix the aluminium section onto the wall, place the rubber separating blocks and finally mount the Zikonyl plastic section.
The minimum installation measure of ZK-H model is 151 mm.
