PREPARATION
The walls onto which the section is to be mounted should be finished and painted.
MOUNTING

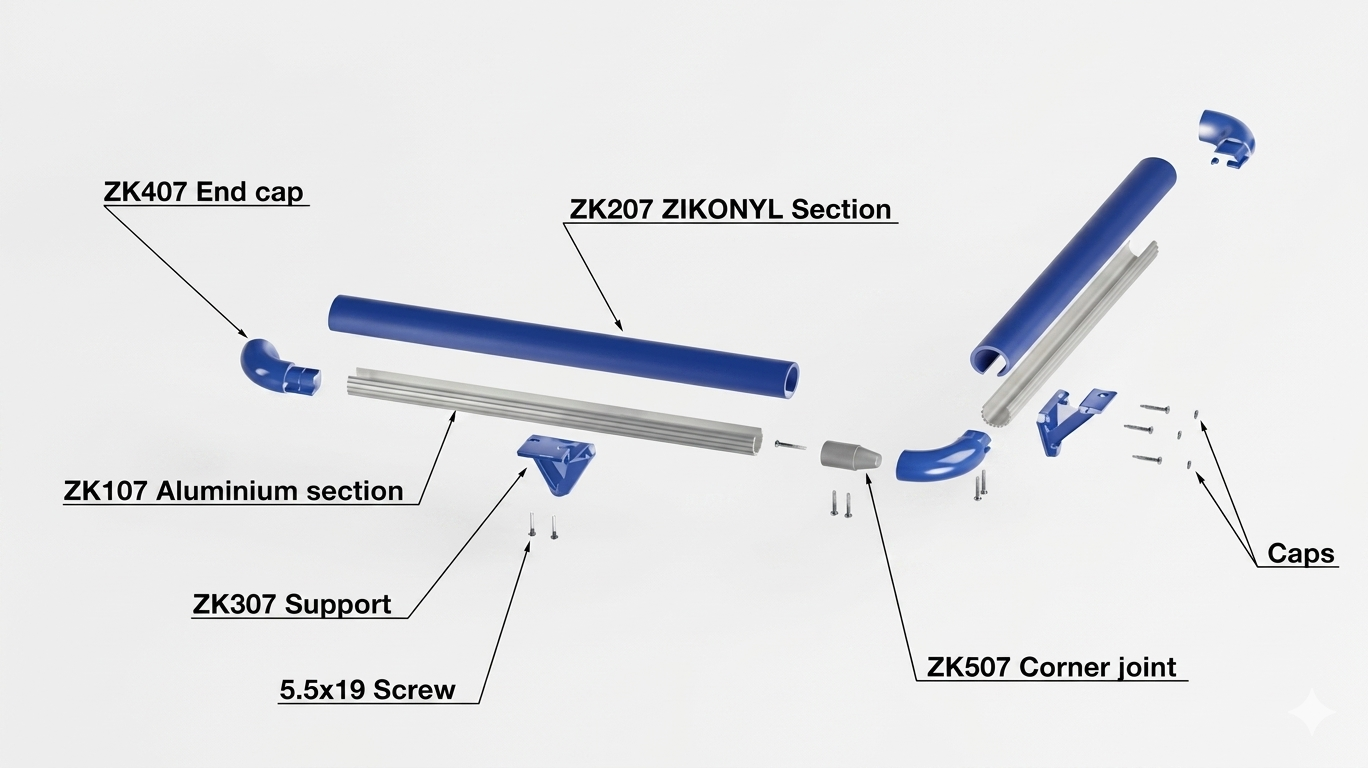

Cut and drill the aluminium sections depending on the measurements needed. Allow for a space of approximately 900 to 1300 mm. between fasteners.
To ensure a better fit, cut the Zikonyl section 2 mm. longer then the aluminium section.
Mount end caps after clipping on the Zikonyl section as well as the rigt-hand ends.

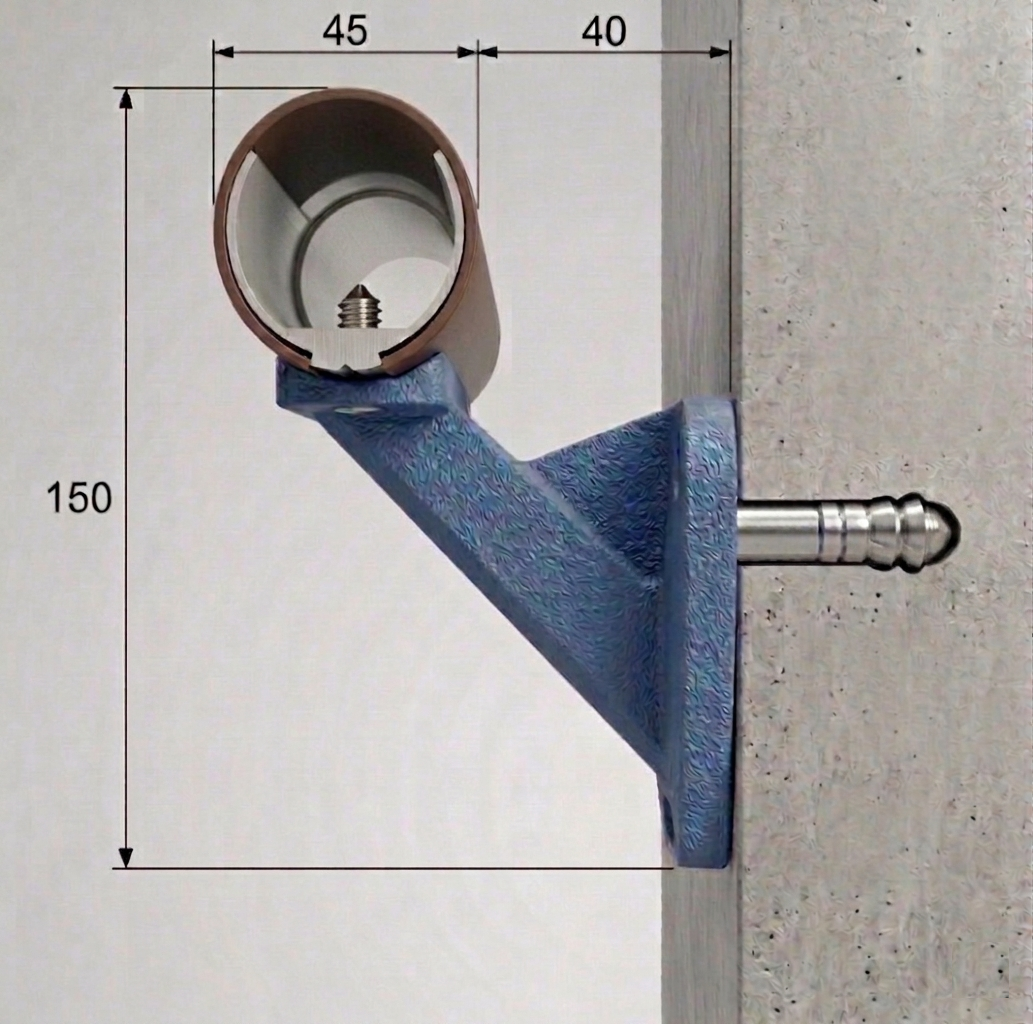

Place the supports on the section and finally mount onto the wall face.
The minimum installation measure of ZK-O model is 350 mm.
