The ZK-R model is a very particular model because it is a variable angle corner guard. It is composed of 2 aluminum and Zikonyl ®, designed for shock absorption. The aluminum will be fixed to the wall by taco and lag screw. The Zikonyl ®, will mount in both aluminums. Besides the face side is textured, thanks to this feature we hide scratches that may occur.
corner-guard-protector-hospital Click to enlarge

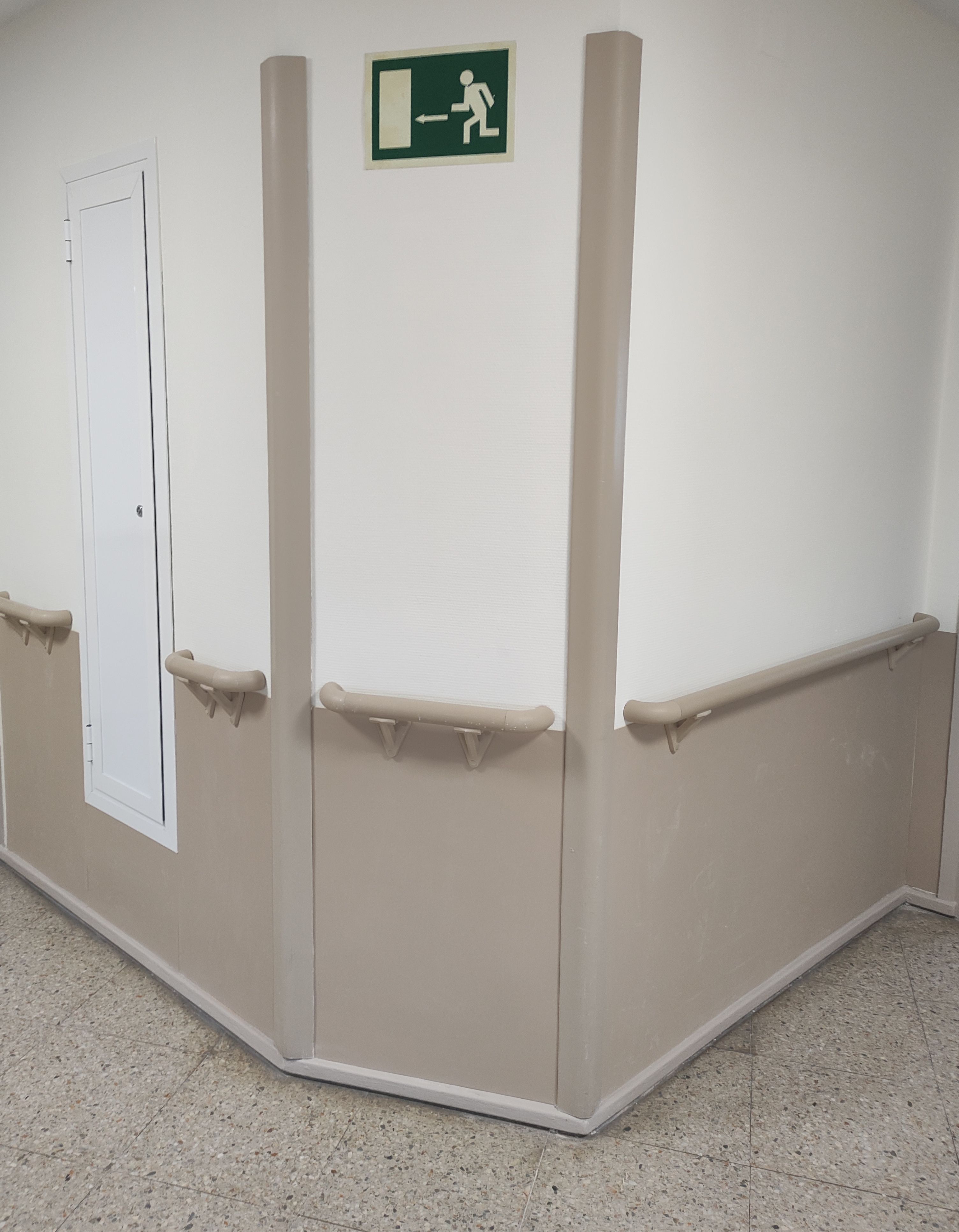

In this photo you can see the vertical protector ZK-R, and the handrail model ZK-O.



The walls into which the section is to be mounted should be finished and painted.


First of all, you have to aluminum cutting and drilling the necessary measures, calculating a separation between two fixations, taking care that the position of the anchors should never be front of each other because the wall is weakened. This model does not have a end bit, since being variable angle is impossible to do it, for this reason, and to avoid the accumulation of dirt, NOT recommend installing the model at less than 2 meter tall height.
About the colors availables of the ZK-R model, you can see in the next Link:  COLOURS
