HORIZONTAL PROTECTION AND HANDRAILS MODEL ZK-V
Handrails made of aluminium and Zikonyl, designed to protect the walls both from impacts and attrition resulting from use and the passage of time. Besides preventing the deterioration of the facilites, it offers the possibility of being used as a support, and is therefore very suitable for health centers. Zikonyl handrails however are so adaptive that they adjust to the characteristics of all types of building. As for theirinstallation, all the necessary material is provided to assure easy and simple mounting.
handrail-wall-protector-corridor-hospital Click to enlarge


Handrail and wall protector in yellow color
handrail-wall-protector-corridor-hospital Click to enlarge

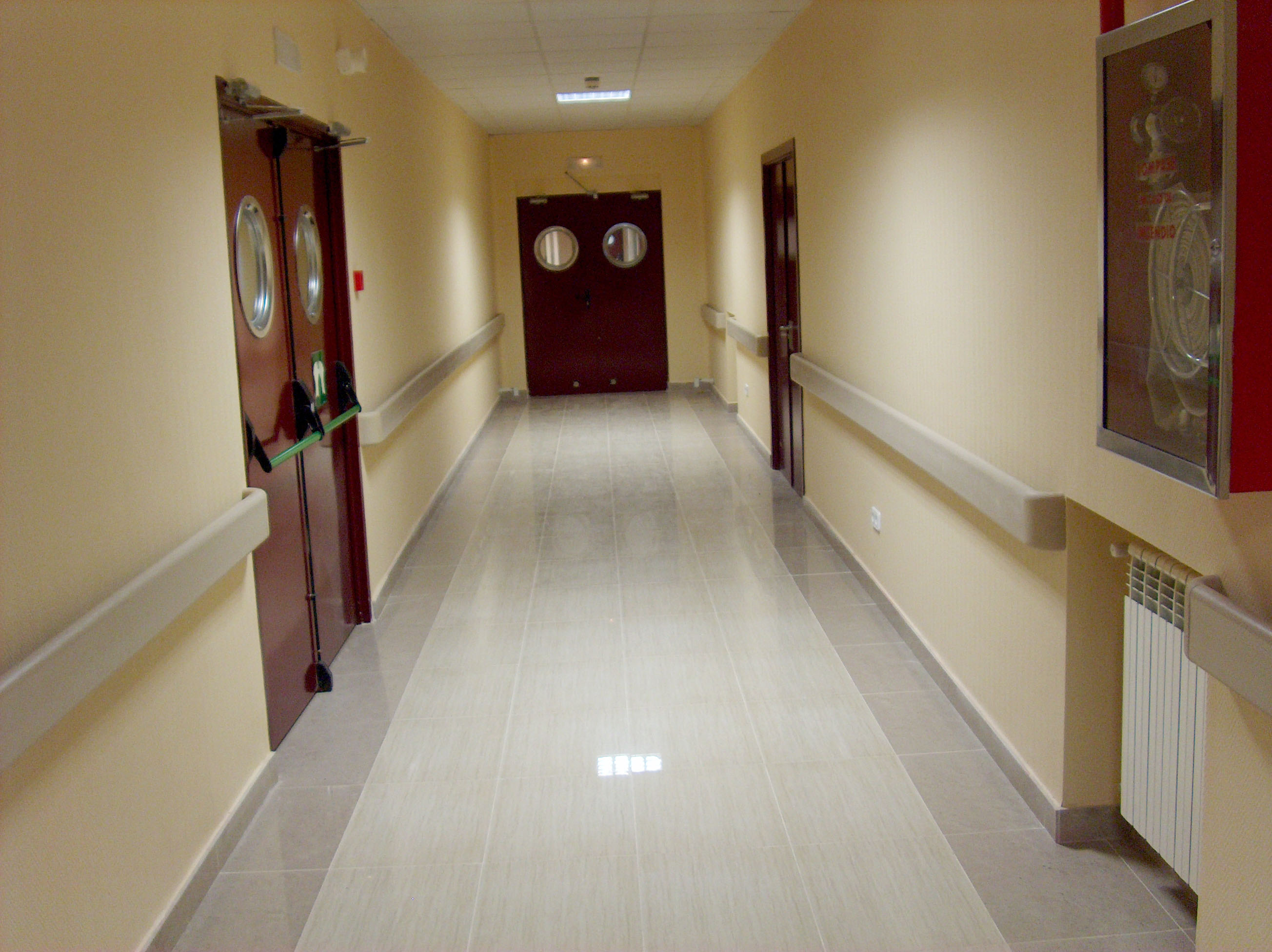

In this photo you can see the handrails ZK-V

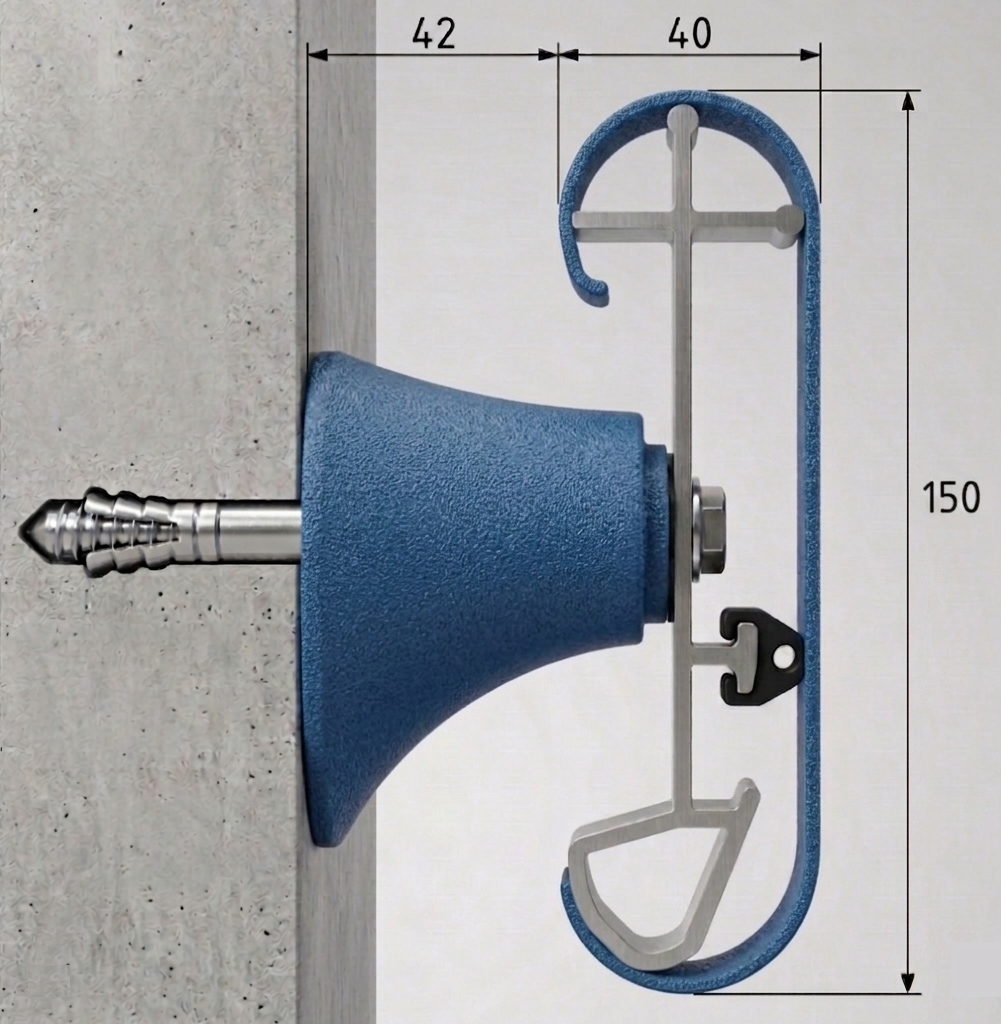

Below you can find the cutting model:ZK-V
ZK-V

Preparation

The walls into which the section is to be mounted should be finished and painted.

Mounting

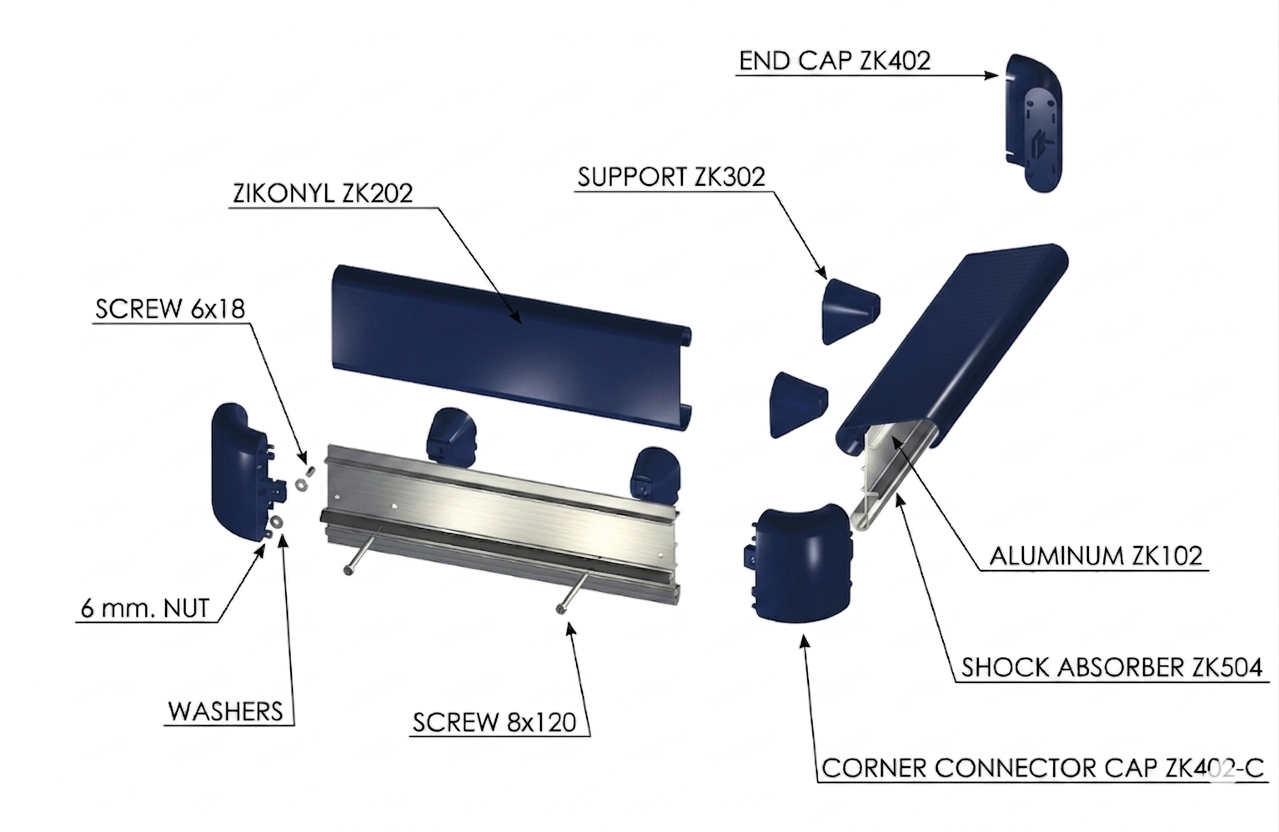

Cut and drill the aluminium sections depending on the measurements needed. Allow for a space of approximately 800 to 1000mm. Between supports. To ensure a better fit, cut the Zikonyl section 2mm. longer than the aluminium section. The t-shaped side of the aluminium section is the upper part. Mount the aluminium section onto the wall by placing the separating supports and then mount the Zikonyl section. The upper part of the Zikonyl section has a thicker edge. Mount the section by rotating it round te t-shape as shown in the diagram.

Mount end caps before clipping on the Zikonyl section at both the left-hand as well as the right-hand ends.

The minimum installation measure of Zk-V model is 310mm.

About the colors availables of the ZK-V model, you can see in the next Link:  COLOURS
